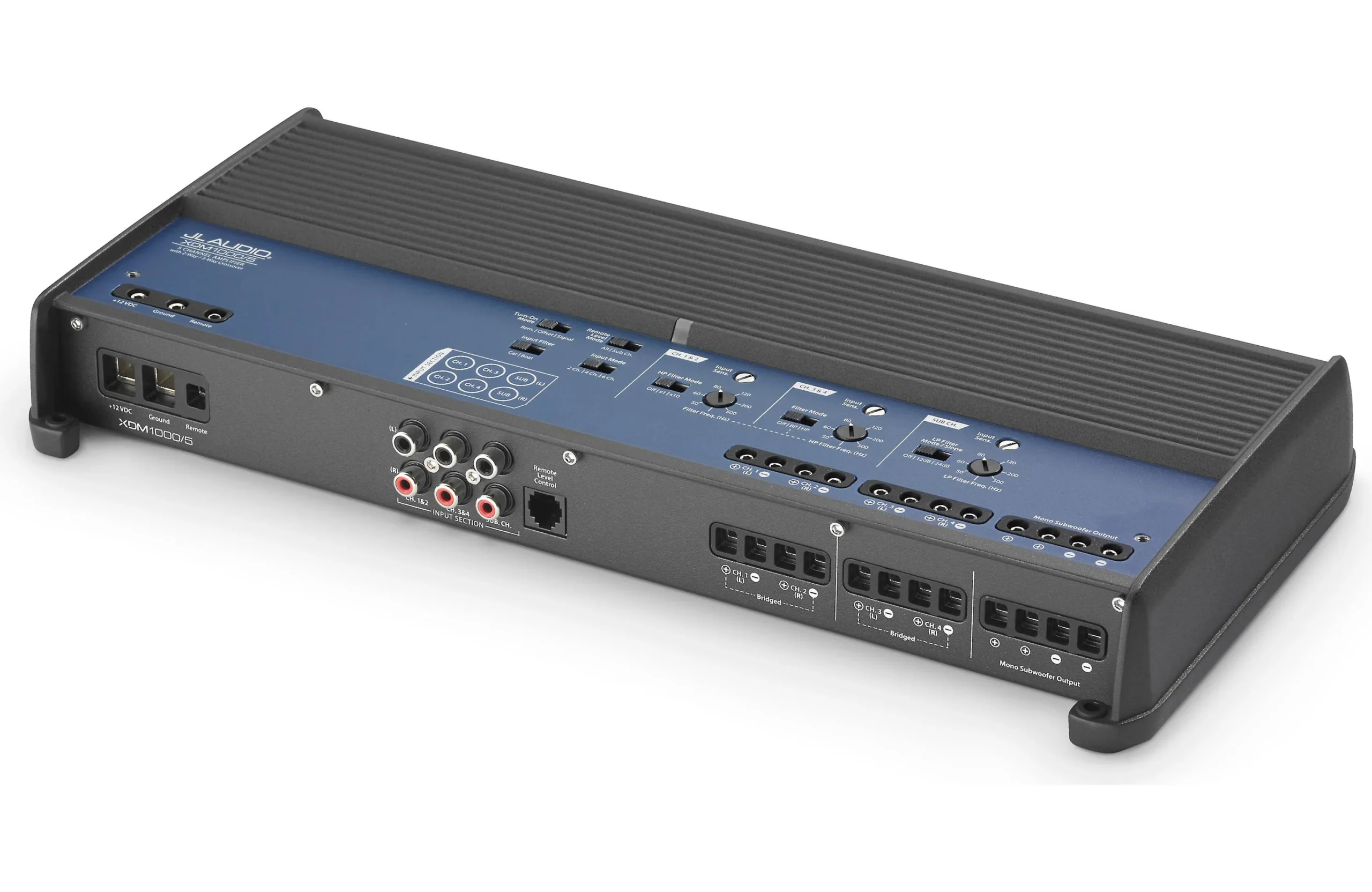

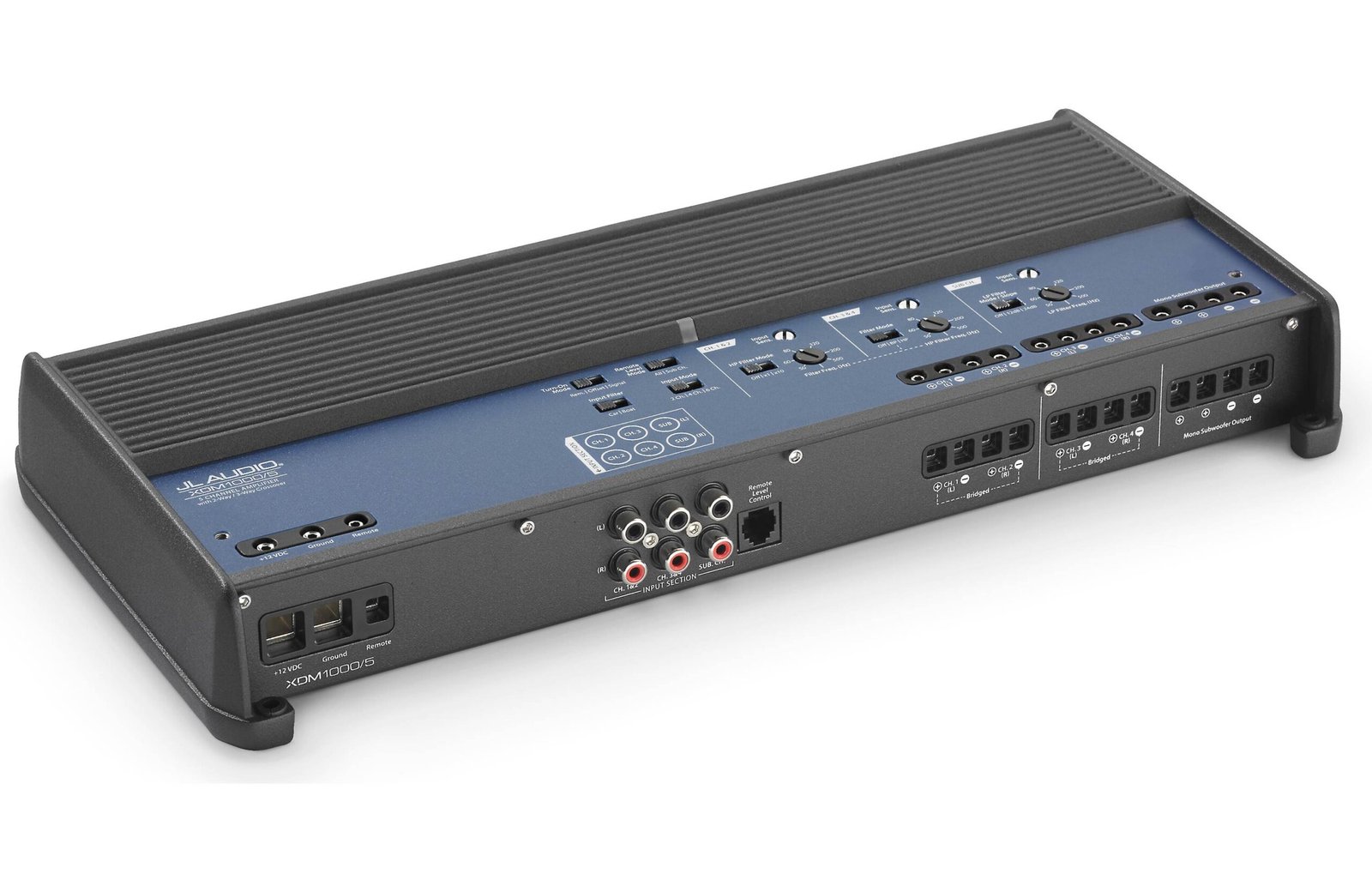

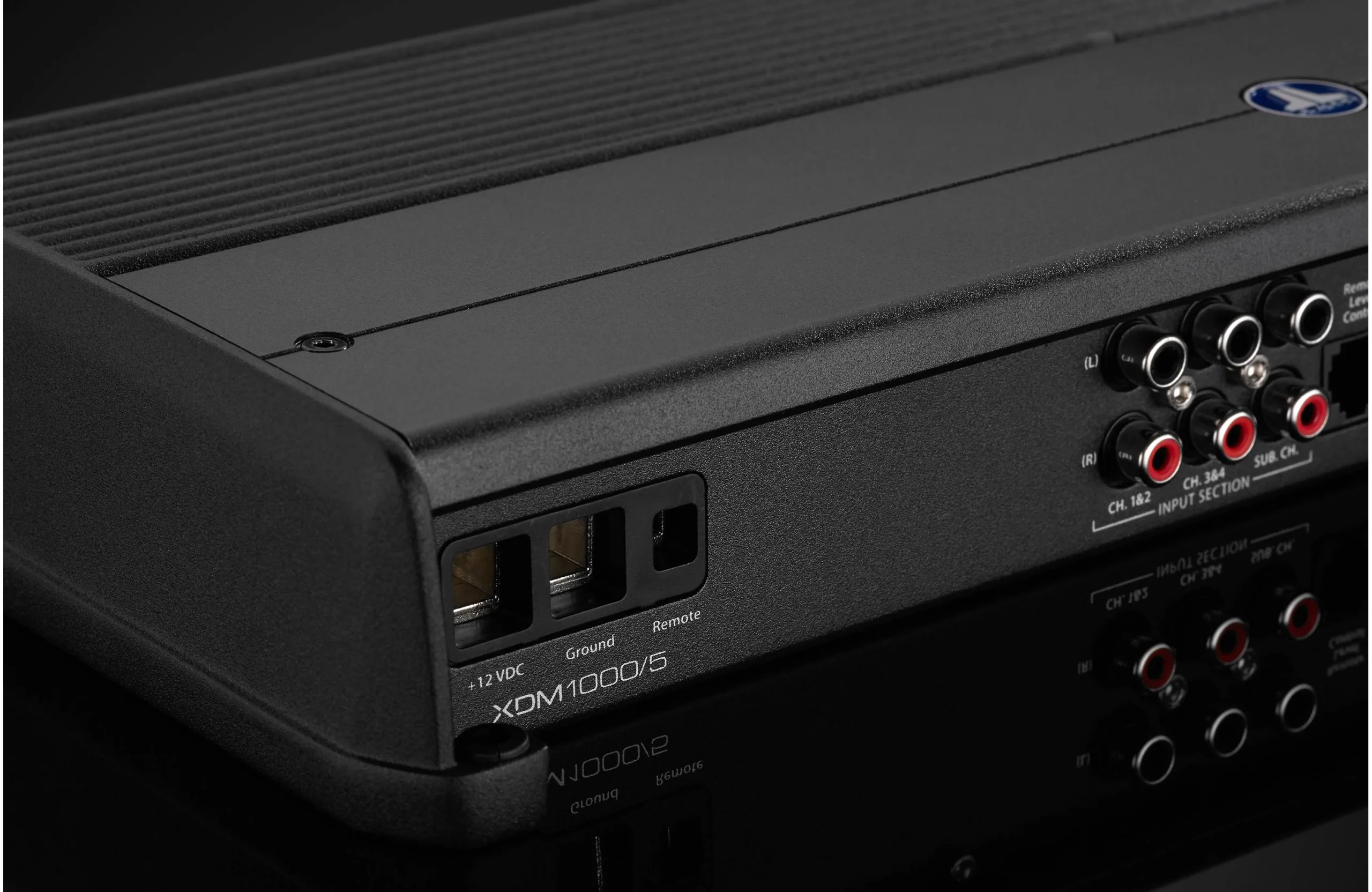

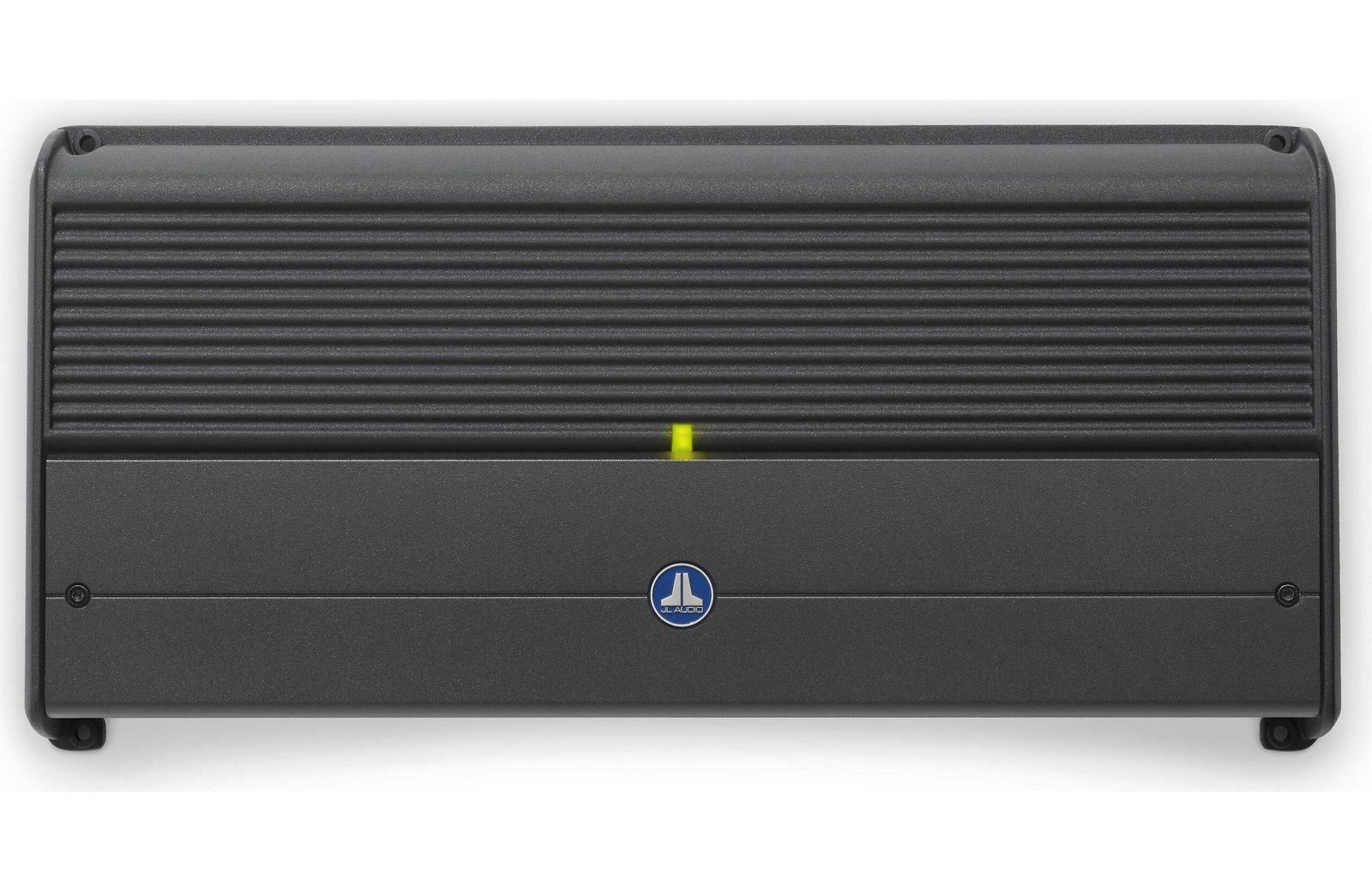

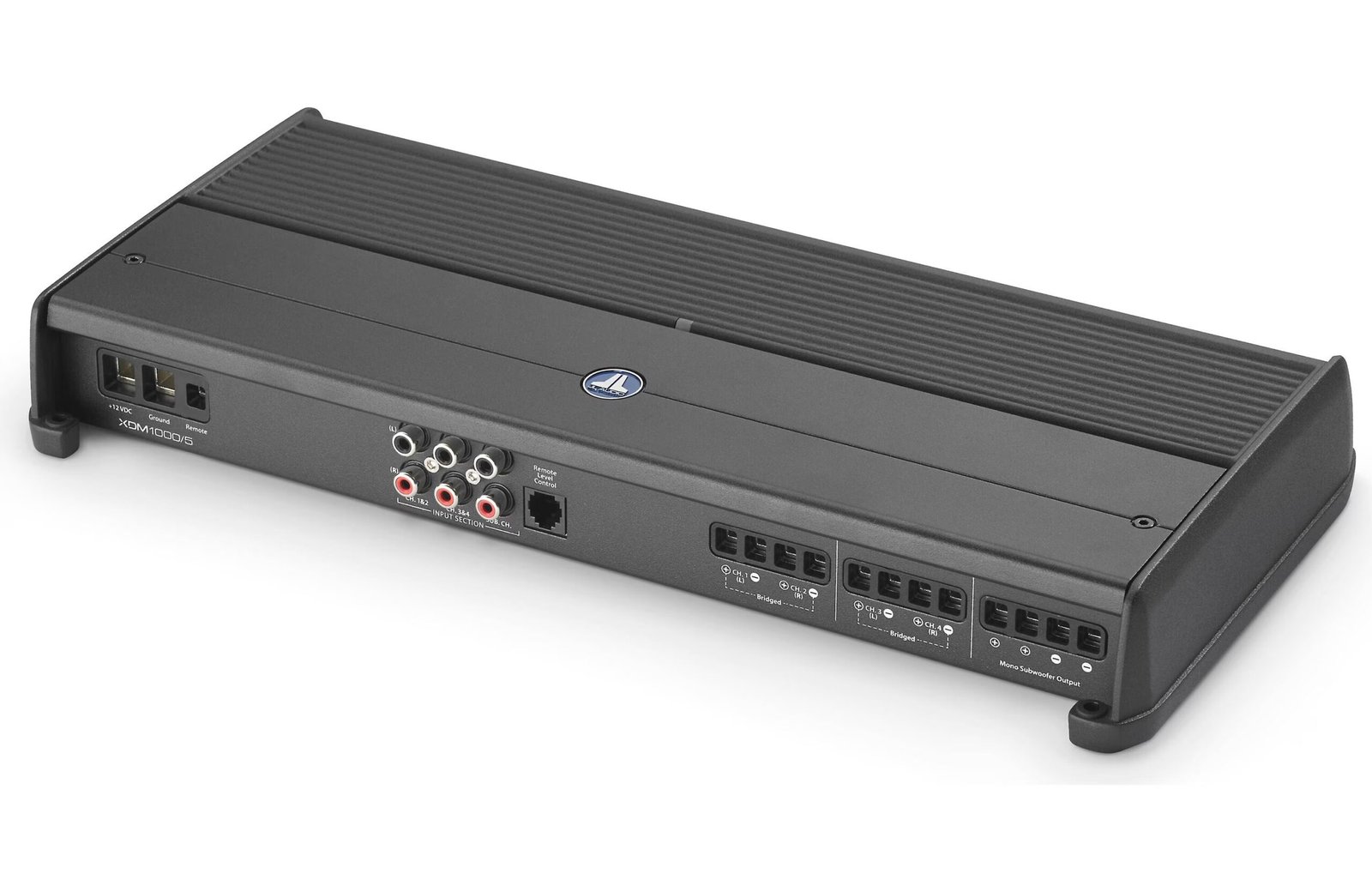

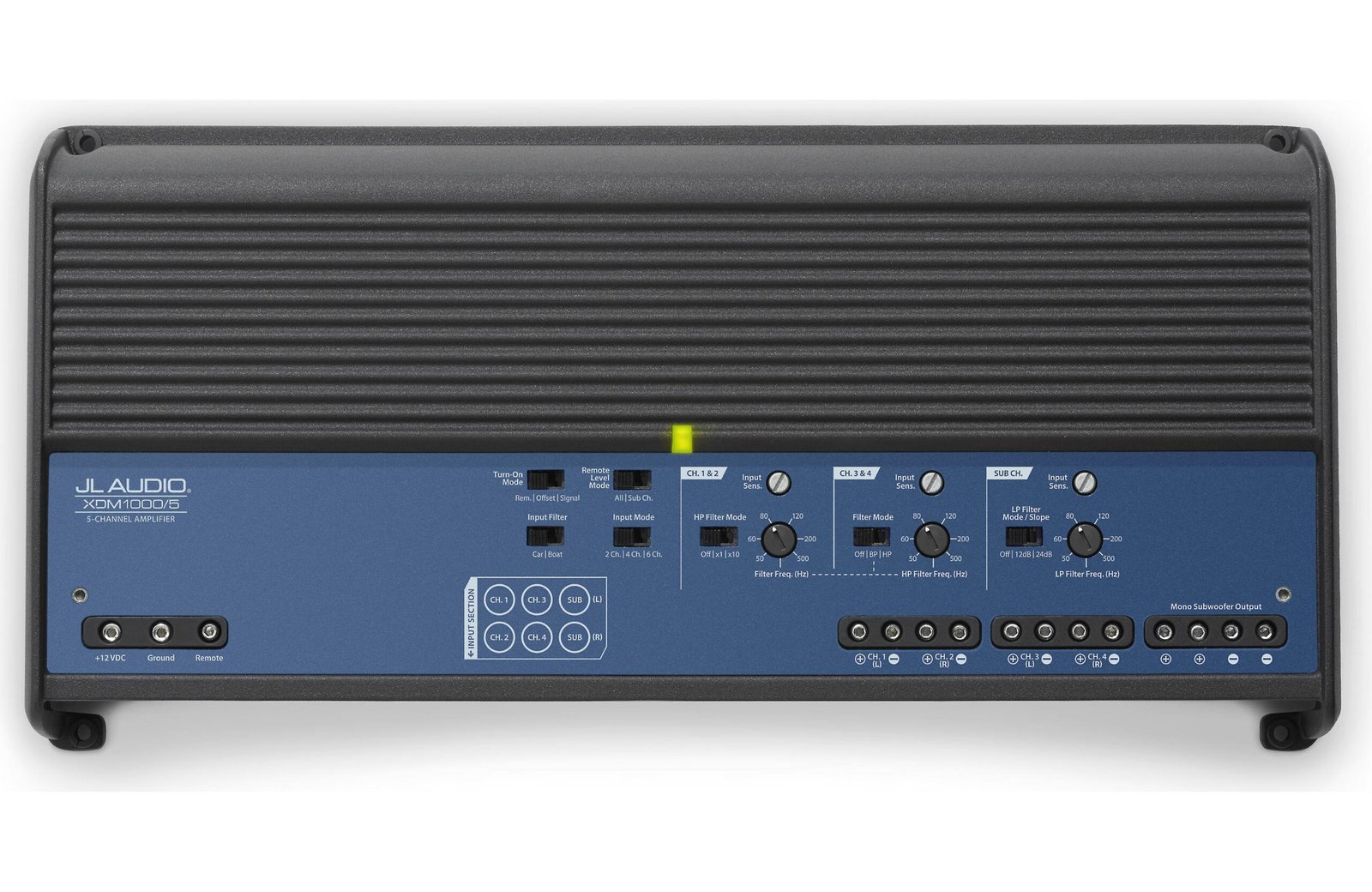

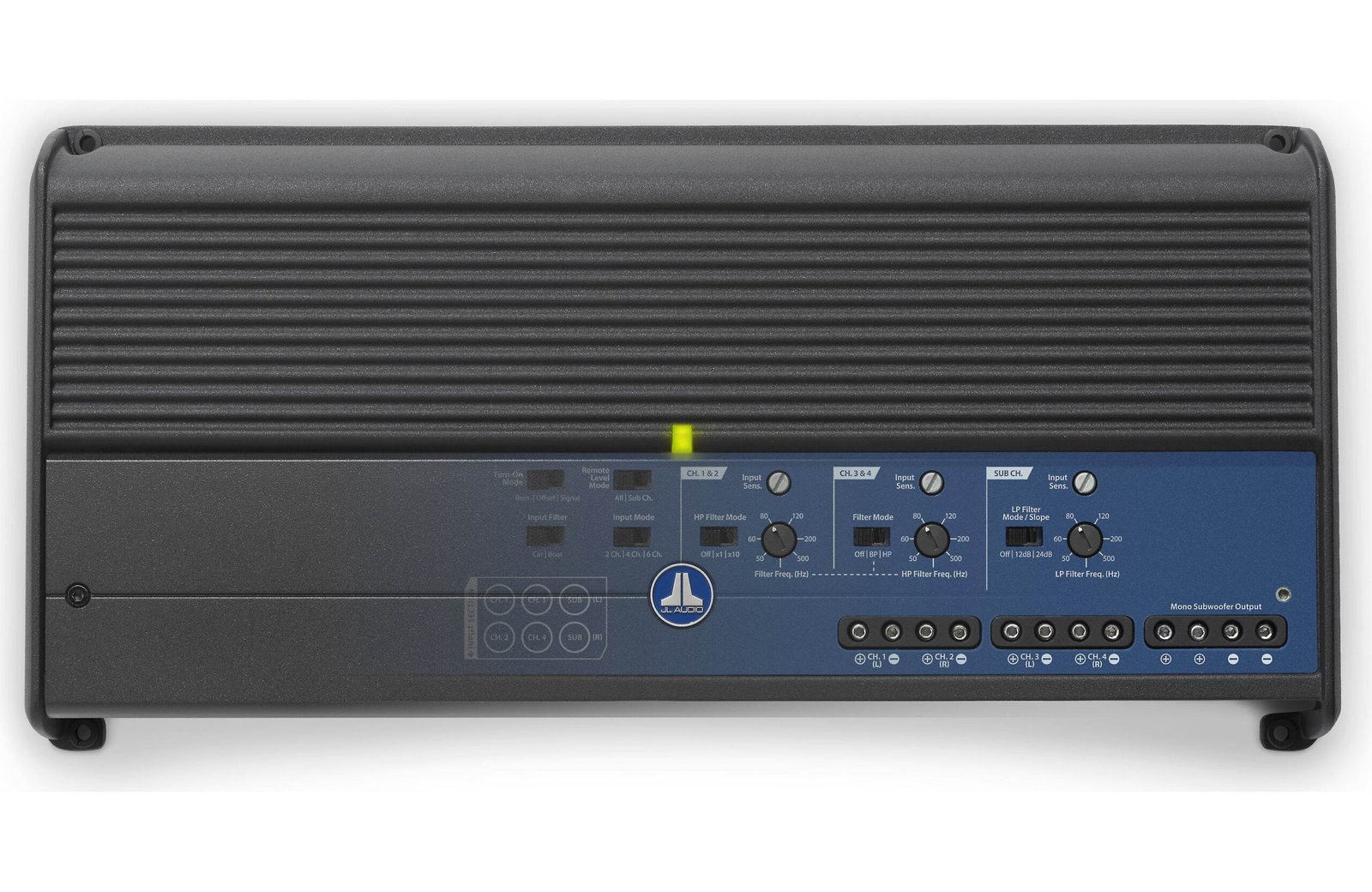

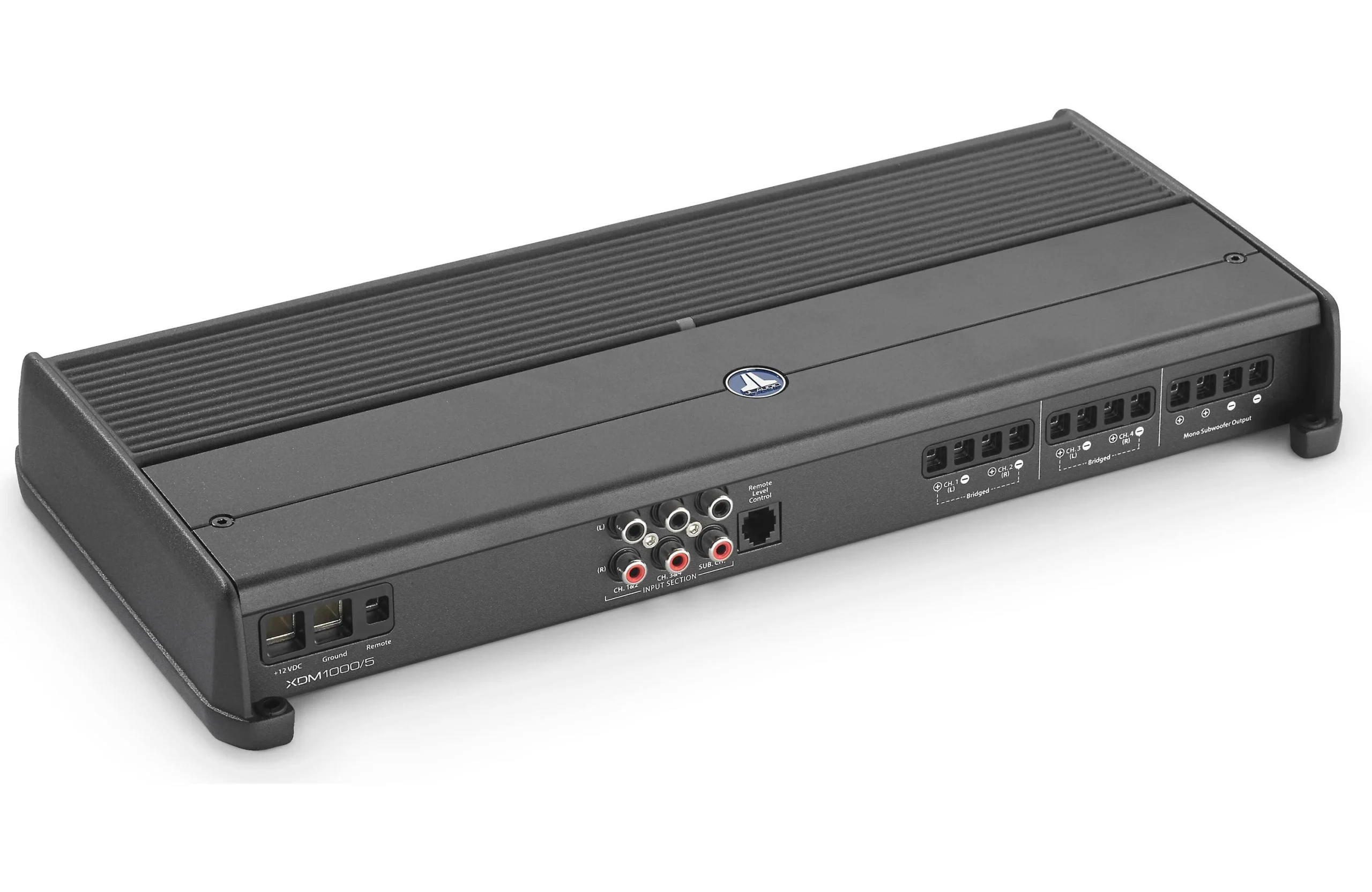

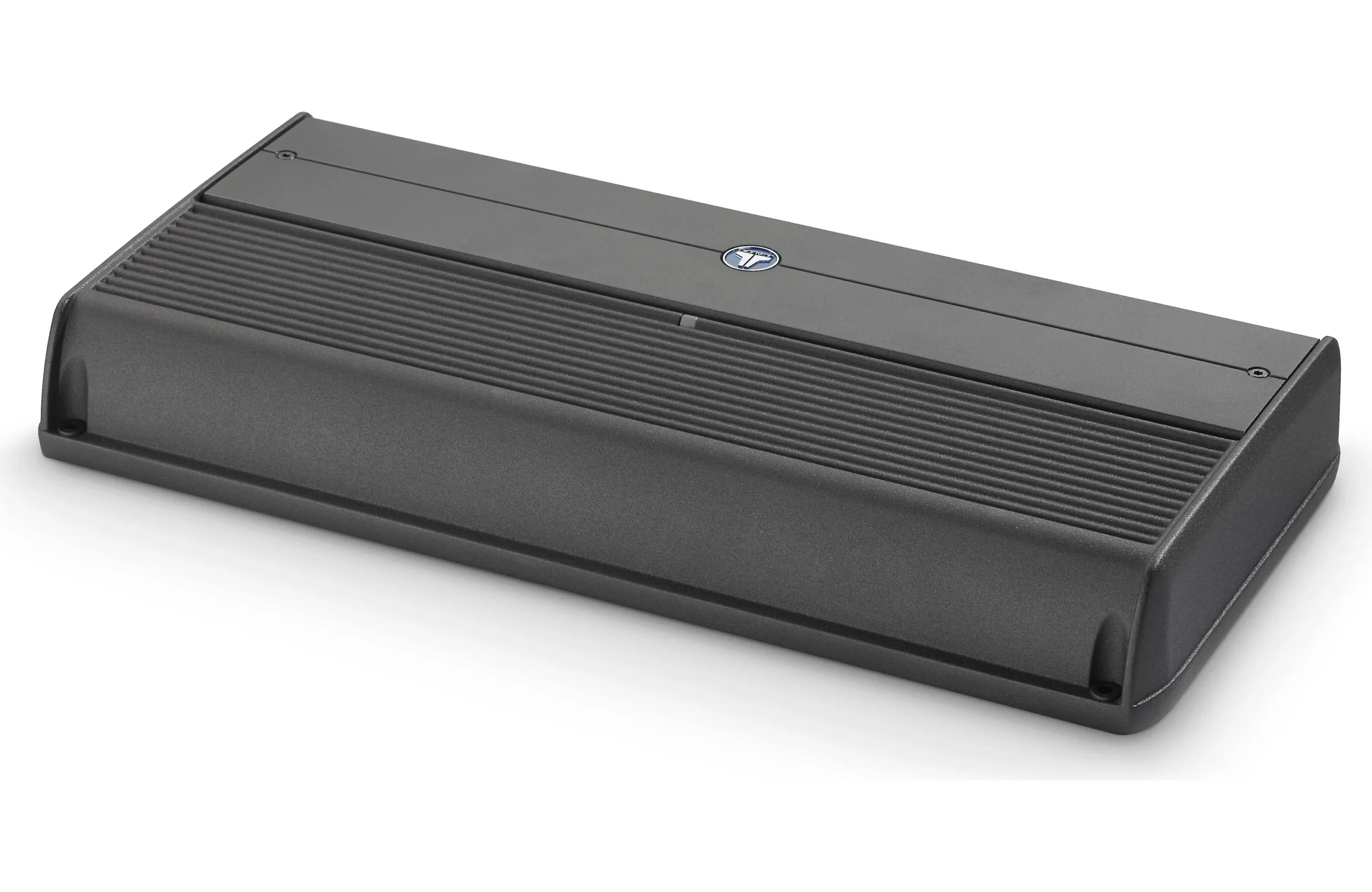

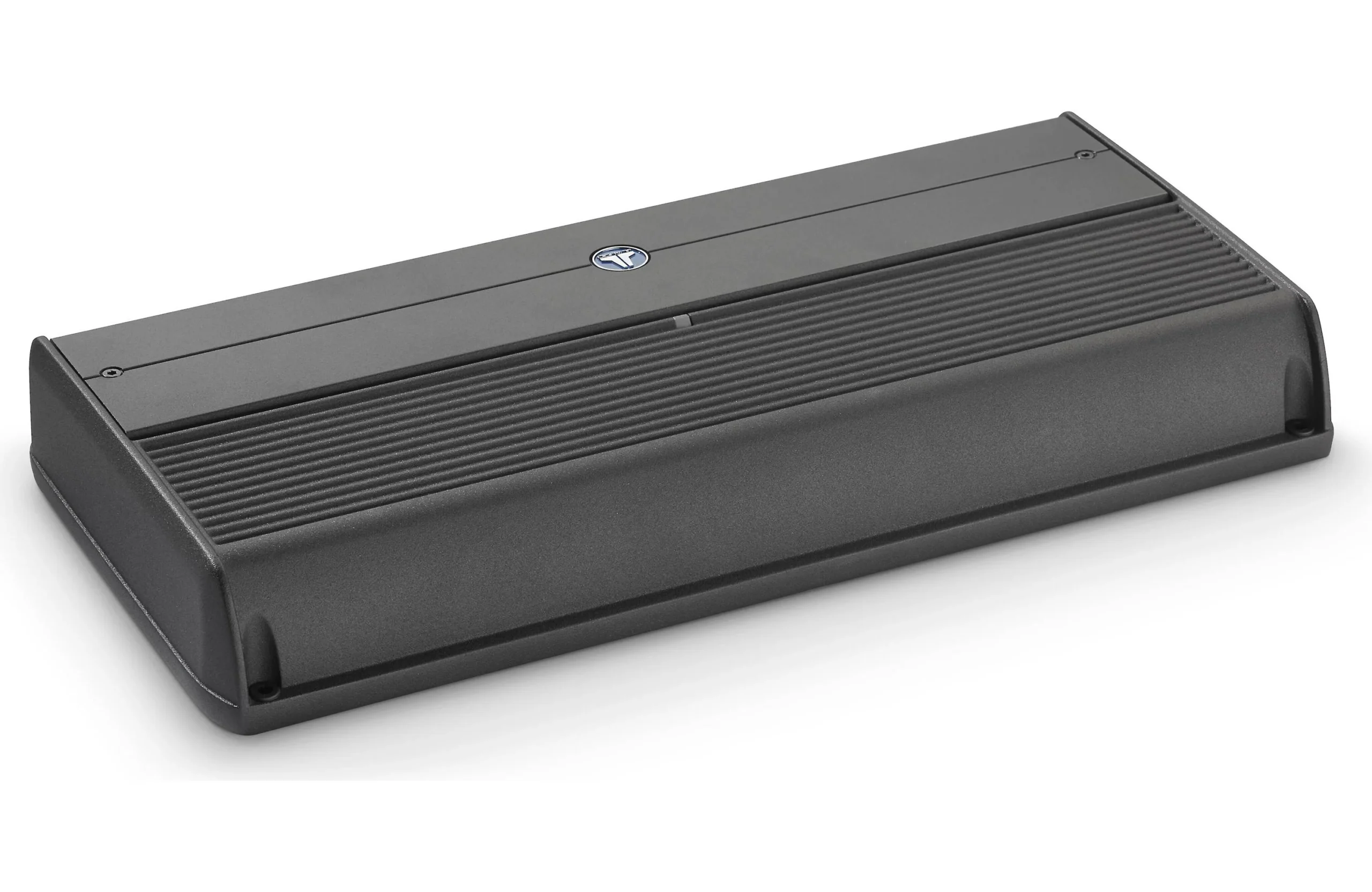

JL Audio XDM1000/5 1000W 5-Channel Class D Car/Marine System Amplifier

5-Channel Class D Car/Marine System Amplifier. 100 W x 4 @ 2 �� + 600 W x 1 @ 2 �� – 14.4VThe XDM1000/5 delivers up to 1000 W of clean power and is ideal for an audiophile-grade. subwoofer + four satellite system. With this potent powerhouse. you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 ��). while also generating a stout 600 W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is our high-speed NexD? switching amplifier design.Suitable for car or boat installations. the XDM1000/5 is built with marine-grade materials and features an exclusive. dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.The XDM1000/5 includes a 12 dB / octave high-pass filter for one main channel pair. a 12 dB octave high-pass or bandpass filter for the other main channel pair. plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier’s filters can also be configured as a true 3-way crossover. with a low-pass filter for the subwoofer channel. a bandpass filter on Ch. 3 & 4. and a high-pass filter on Ch. 1 & 2. An x10 multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately). you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver’s seat or helm.Finished in a sleek. black powder-coat. all controls are protected beneath a gasketed. removable top cover for easy access.

• 1. Power Output:
  75 watts RMS x 4 channels at 4 ohms + 300 watts RMS x 1 channel at 4 ohms (subwoofer channel)
  100 watts RMS x 4 channels at 2 ohms + 500 watts RMS x 1 channel at 2 ohms
  Bridged: 200 watts RMS x 2 channels at 4 ohms + 500 watts RMS x 1 channel at 2 ohms (subwoofer)
  2. Class D Amplification:
  Full-range Class D amplifier design for high efficiency. low heat generation. and powerful. clean sound across all channels.


• 3. Differential-Balanced Inputs:
  Helps reduce noise and ground-loop interference. ensuring cleaner audio signal quality for both full-range and subwoofer channels.
  4. Advanced Thermal Management:
  Built-in thermal protection and cooling mechanisms prevent overheating. ensuring stable operation under load and in high-heat environments.
  5. Variable Crossovers:
  Front and rear channels feature a variable high-pass filter (50Hz �C 500Hz) and the subwoofer channel features a low-pass filter (50Hz �C 500Hz). allowing for precise control of frequency response across all channels.


• 6. Bass Boost Control:
  Subwoofer channel includes a variable bass boost (0-12 dB at 45 Hz) for added low-end emphasis when desired.
  7. Remote Level Control (Optional):
  Compatible with the JL Audio RBC-1 remote level control. enabling on-the-fly adjustments to the subwoofer volume directly from the driver’s seat.
  8. Signal-Sensing Auto Turn-On:
  Allows the amp to automatically turn on when it detects an incoming signal. simplifying integration with factory audio systems.


• 9. Compact and Versatile Design:
  Despite its high output. the compact chassis allows for flexible installation in a wide variety of vehicles.
  10. High-Quality Build:
  Durable construction and high-quality components ensure long-lasting reliability and excellent sound performance.
  11. Multiple Channel Modes:
  Capable of powering a full speaker system with subwoofer. making it versatile for those who want to run an entire system from one amplifier.
